DUCTILE IRON GATE VALVE,SOCKET END

Product Name:

DUCTILE IRON GATE VALVE,SOCKET END

No. :

PLKR-0002-1

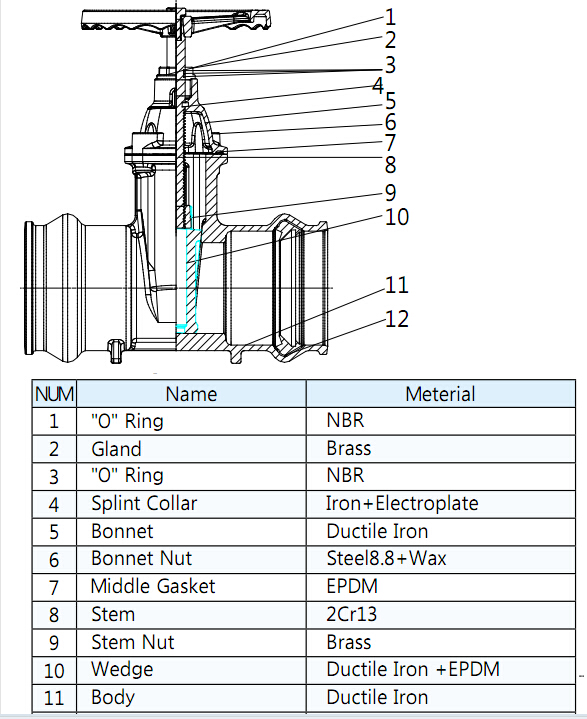

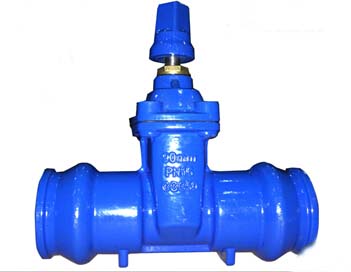

Ductile Iron DIN3352 F5 resilient Seated double socket Gate Valve

Valve type:Gate valve

Seal:resilient Seat

Materials:Ductile iron

Connection: double socket

Design Standard:DIN3352 Part 5(F5)

Working Pressure:PN16

Coating:Blue Epoxy Powder

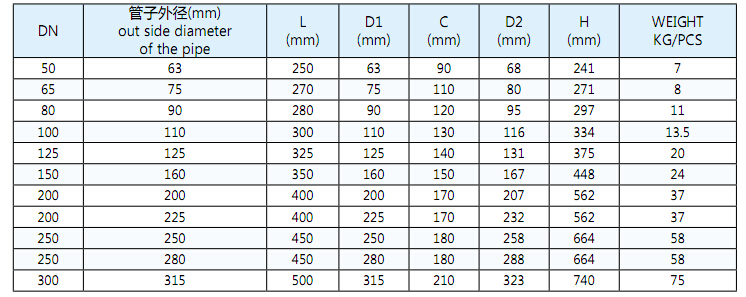

Size:available:DN50mm-300mm

L of valve available:DIN3202 SABS664 286mm-548mm

Application:for PVC-U or PE pipe especially for underground pipe systems.
