DUCTILE IRON GATE VALVE,FLANGED END
|
Product Name:
DUCTILE IRON GATE VALVE,FLANGED END
No. :
PLKR-0002-2
 |
Ductile Iron Resilient Seated Gate Valve DIN3352 F4
Gate valve Body Materials:Ductile iron:
Stem:Stainless steel (SS304)
Wedge:Ductile Iron+EPDM or NBR
Stem Nut:Brass
Bonnet:Ductile Iron
Flange connect.
Standard:DIN3352 F4
Coating:blue Epoxy powder,WRAS Approval
Working:Pressure:PN10,PN16,PN25
Working Temperature:NBR≤80℃ EPDM≤120℃
Gate valve Body Materials:Ductile iron:
Stem:Stainless steel (SS304)
Wedge:Ductile Iron+EPDM or NBR
Stem Nut:Brass
Bonnet:Ductile Iron
Flange connect.
Standard:DIN3352 F4
Coating:blue Epoxy powder,WRAS Approval
Working:Pressure:PN10,PN16,PN25
Working Temperature:NBR≤80℃ EPDM≤120℃

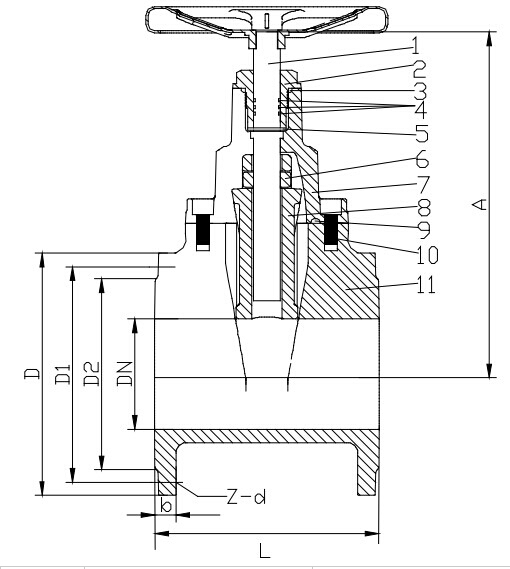

| NUM | Name | Materials |
| 1 | Stem | 2Cr13 |
| 2 | Gland | Brass |
| 3 | O Ring | NBR |
| 4 | O Ring | NBR |
| 5 | Gasket | Nylo |
| 6 | Stem Nut | Brass |
| 7 | Bonnet | GGG50 |
| 8 | Wedge | GGG50+EPDM |
| 9 | Middle Gasket | NBR |
| 10 | Bolts | Steel 8.8+Wax |
| 11 | Body | GGG50 |
