SINGLE SPHERE FLANGED RUBBER EXPANSION JOINT
|
Product Name:
SINGLE SPHERE FLANGED RUBBER EXPANSION JOINT
No. :
PLKR-0006-1
 |

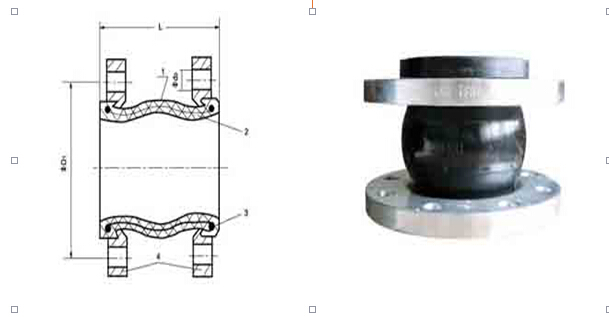

Table of Materials Technical Condition
|
No.
|
Part
|
Material
|
|
1
|
Main body
|
Polarized rubber
|
|
2
|
Lining
|
Nylon cord fabric
|
|
3
|
Frame
|
Hard steel wire
|
|
4
|
Flange
|
Forged steel
|
|
Model
|
KXT-(I)
|
KXT-(II)
|
|
Working pressure Mpa(kg.f/cm2)
|
1.6(16)
|
1.0(10)
|
|
Bursting pressure Mpa(kg.f/cm2)
|
4.8(48)
|
3.0(30)
|
|
Vacuity KPa(mmHg)
|
100(750)
|
86.7(650)
|
|
Applicable temp.℃
|
-10-+80
|
|
|
Applicable media
|
Air..Compressed air,water,sea
water,weak acid,etd.
|
|
|
Both ends of the joint can be arbitrary deflected for free adjustment of axial or lateral displacement
|
||
Table of Main Parameters of Normal Core Diameter,Length,Displacement Value and Flange
|
DN
|
Length
L
(mm)
|
Bolt
n
|
Bolt hole D0(mm)
|
Bolt hole center Circle D1(mm)
|
Axial displacement(mm)
|
Lateral displace-ment
(mm)
|
Angle of deflection
(a1+a2)
|
|||||
|
(mm)
|
(in)
|
stretch
|
compression
|
|||||||||
|
32
|
11/4
|
150
|
130
|
95
|
4
|
17.5
|
100
|
6
|
9
|
9
|
15°
|
|
|
40
|
11/2
|
150
|
130
|
95
|
4
|
17.5
|
110
|
6
|
10
|
9
|
15°
|
|
|
50
|
2
|
150
|
130
|
105
|
4
|
17.5
|
125
|
7
|
10
|
10
|
15°
|
|
|
65
|
21/2
|
150
|
130
|
115
|
4
|
17.5
|
145
|
7
|
13
|
12
|
15°
|
|
|
80
|
3
|
150
|
130
|
130
|
8
|
17.5
|
160
|
8
|
15
|
12
|
15°
|
|
|
100
|
4
|
150
|
130
|
135
|
8
|
17.5
|
180
|
10
|
19
|
13
|
15°
|
|
|
125
|
5
|
150
|
130
|
170
|
8
|
17.5
|
210
|
12
|
19
|
13
|
15°
|
|
|
150
|
6
|
150
|
130
|
180
|
8
|
22
|
240
|
12
|
20
|
14
|
15°
|
|
|
200
|
8
|
150
|
130
|
195
|
205
|
8
|
22
|
295
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
200
|
130
|
230
|
245
|
12
|
22
|
350
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
200
|
130
|
245
|
260
|
12
|
22
|
400
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
200
|
265
|
16
|
22
|
460
|
16
|
25
|
22
|
15°
|
||
|
400
|
16
|
200
|
265
|
16
|
26
|
515
|
16
|
25
|
22
|
15°
|
||
|
450
|
18
|
200
|
265
|
20
|
26
|
565
|
16
|
25
|
22
|
15°
|
||
|
500
|
20
|
200
|
265
|
20
|
26
|
620
|
16
|
25
|
22
|
15°
|
||
|
600
|
24
|
200
|
265
|
20
|
30
|
725
|
16
|
25
|
22
|
15°
|
||
|
700
|
28
|
200
|
270
|
24
|
26
|
810
|
16
|
25
|
22
|
10°
|
||
|
800
|
32
|
200
|
270
|
24
|
30
|
920
|
16
|
25
|
22
|
10°
|
||
|
900
|
36
|
200
|
270
|
24
|
30
|
1020
|
16
|
25
|
22
|
10°
|
||
|
1000
|
40
|
200
|
270
|
28
|
30
|
1120
|
16
|
25
|
22
|
10°
|
||
Note: For flanges of other standards or non-standard, it is necessary to be agreed upon separately .Please specify standard of furnish diagram and relative parameter, we will manufacture accordingly.DN500-600 is mode II, the working pressure is 1.0Mpa.DN700-1000 working pressure is 0.6Mpa and the flange isPN0.6MPa.
