DOUBLE SPHERE SCREWED RUBBER EXPANSION JOINT
|
Product Name:
DOUBLE SPHERE SCREWED RUBBER EXPANSION JOINT
No. :
PLKR-0006-3
 |
Table of Materials Technical Condition
|
Working pressure
|
1.0Mpa
|
Deflecting angle
|
（a1+a2）45℃
|
|
Bursting pressure
|
3.0Mpa
|
VACUITY
|
53KPa
|
|
Applicable temp.℃
|
-10-+80
|
||
|
Applicable media
|
Air.Compressed air,water,sea water,weak acid,etc.
|
||
|
No.
|
Part
|
Materials
|
|
1
|
Main body
|
Polarized rubber
|
|
2
|
Lining
|
Nylon cord fabric
|
|
3
|
Union
|
Malleable iron or Steel
|
If request PN16,please indicate ,when place the order.

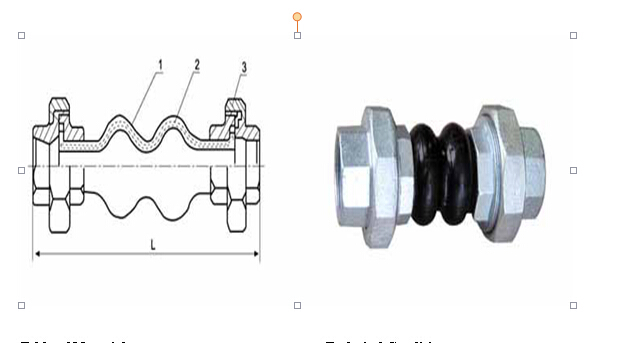

Table of Normal Core Diameter of pige,axial displacement,and lateral displacement
|
Normal core diameter DN
|
L (mm)
L value
|
Axial displacement(mm)
|
Lateral displacement
|
||
|
(mm)
|
(in)
|
Stretch(mm)
|
Compression
|
||
|
15
|
1/2
|
200
|
5-6
|
22
|
22
|
|
20
|
3/4
|
200
|
5-6
|
22
|
22
|
|
25
|
1
|
200
|
5-6
|
22
|
22
|
|
32
|
11/4
|
200
|
5-6
|
22
|
22
|
|
40
|
11/2
|
200
|
5-6
|
22
|
22
|
|
50
|
2
|
200
|
5-6
|
22
|
22
|
|
65
|
21/2
|
240
|
5-6
|
22
|
22
|
|
80
|
3
|
240
|
5-6
|
22
|
22
|
