DIN CAST IRON STRAINER, SCREWED END
|
Product Name:
DIN CAST IRON STRAINER, SCREWED END
No. :
PLKR-0001-2
 |
Description:
1. Available Medium: Water ,Steam Petroleum Products
2. Working Temperature:≤200℃
3. Screwed: BSP or BSPT
Materials List
|
No.
|
Part
|
Material
|
Standard
|
|
1
|
Body
|
Cast iron or Ductile iron
|
GG25 or GGG40
|
|
2
|
Plug
|
Cast iron or Ductile iron or Steel
|
GG25 or GGG40
|
|
3
|
Cover
|
Cast iron or Ductile iron
|
GG25 or GGG40
|
|
4
|
Screen
|
Stainless Steel
|
304SS
|
|
5
|
Gasket
|
Graphite or Rubber
|
|

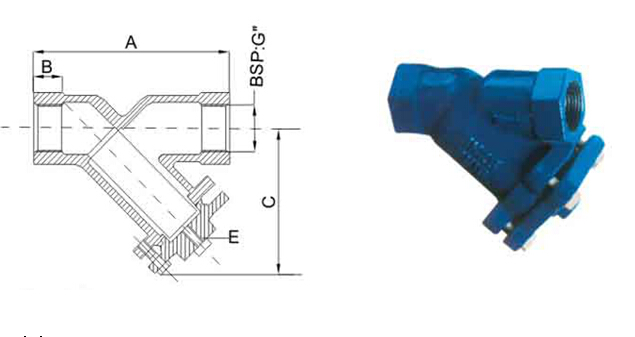

Dimensions(mm)
|
DN
|
12
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
|
A
|
90
|
100
|
120
|
140
|
170
|
200
|
260
|
280
|
|
B
|
1
|
16
|
18
|
18
|
18
|
20
|
25
|
28
|
|
C
|
72
|
80
|
90
|
105
|
115
|
170
|
205
|
210
|
|
E
|
M12
|
M16
|
||||||
|
BSP:G”
|
1/2
|
3/4
|
1
|
1 1/4
|
1 1/2
|
2
|
2 1/2
|
3
|
|
WT(kg)
|
1.1
|
1.49
|
2
|
3.02
|
3.93
|
6.6
|
9.93
|
12.7
|
